Rail picking cart

HomeHorticulture Materails, product

 Rail picking cart

The greenhouse picking vehicle is an electric track (or wheeled) lifting work platform specifically designed for multi-span greenhouses or smart sheds. It is mainly used for agricultural operations at height, such as harvesting, pruning, pollination, and spraying of fruits and vegetables (like tomatoes, cucumbers, and peppers). Its typical featu……

Skype LiveChat

The greenhouse picking vehicle is an electric track (or wheeled) lifting work platform specifically designed for multi-span greenhouses or smart sheds. It is mainly used for agricultural operations at height, such as harvesting, pruning, pollination, and spraying of fruits and vegetables (like tomatoes, cucumbers, and peppers). Its typical features include a hydraulic scissor lift (usually reaching 2–3 meters), an electric chassis, track or wheeled movement, and a 360° rotating platform. It can increase efficiency by 5–10 times while reducing labor intensity and safety risks.

Rail picking cart specification

Rail Picking cart specification
Model No.NameSpecificationLengthColor
Lifting capacity kg200150200150
Max Working height mm5000600050006000
Max Platform height mm3000400030004000
Mini Platform height mm600705600705
Whole length mm1935193519351935
Whole Width mm1655176016551760
Platform size mm1910x5101910x5101910x6501910x650
Mini ground distance mm70707070
Distance between Rail center mm550550800800
Diameter/Thickness of track mm48/2.5~4.048/2.5~4.048/2.5~4.048/2.5~4.0
Driving motor24V, 0.5kw24V, 0.5kw24V, 0.5kw24V, 0.5kw
Lifting motor24V, 2.2kw24V, 2.2kw24V, 2.2kw24V, 2.2kw
Running speed0~3.5km/h0~3.5km/h0~3.5km/h0~3.5km/h
Rising/falling speed12 s/14 s18s/20s12 s/14 s18s/20s
Battery2x12V/80Ah 2x12V/80Ah2x12V/108Ah2x12V/108Ah
Charger24V/15A24V/15A24V/15A24V/15A
Wheel∅200x50mm∅200x50mm∅200x50mm∅200x50mm
Total weight 520kg590kg590kg660kg

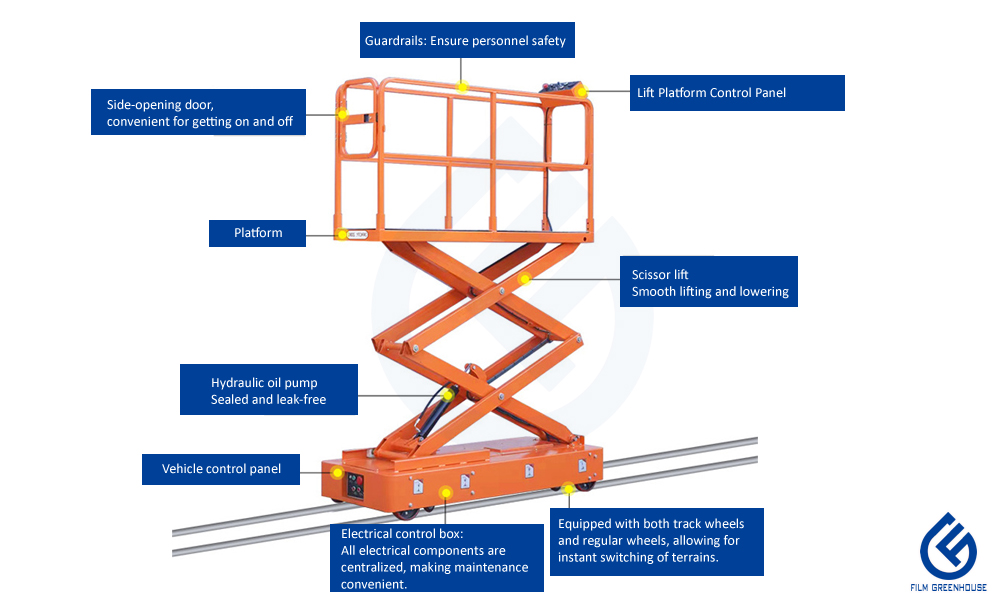

picking cart introduction

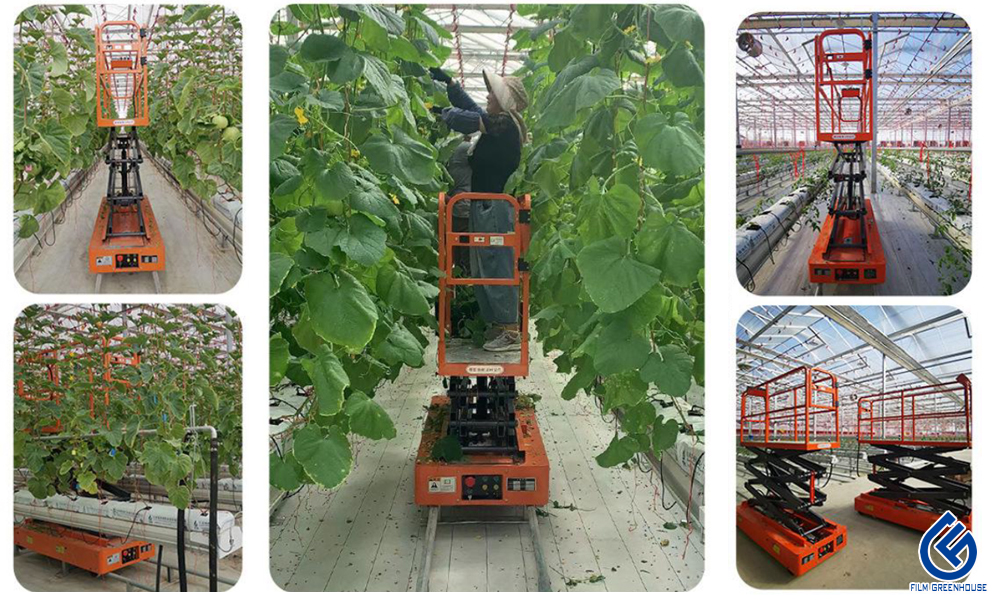

Picking cart application

Picking cart application
